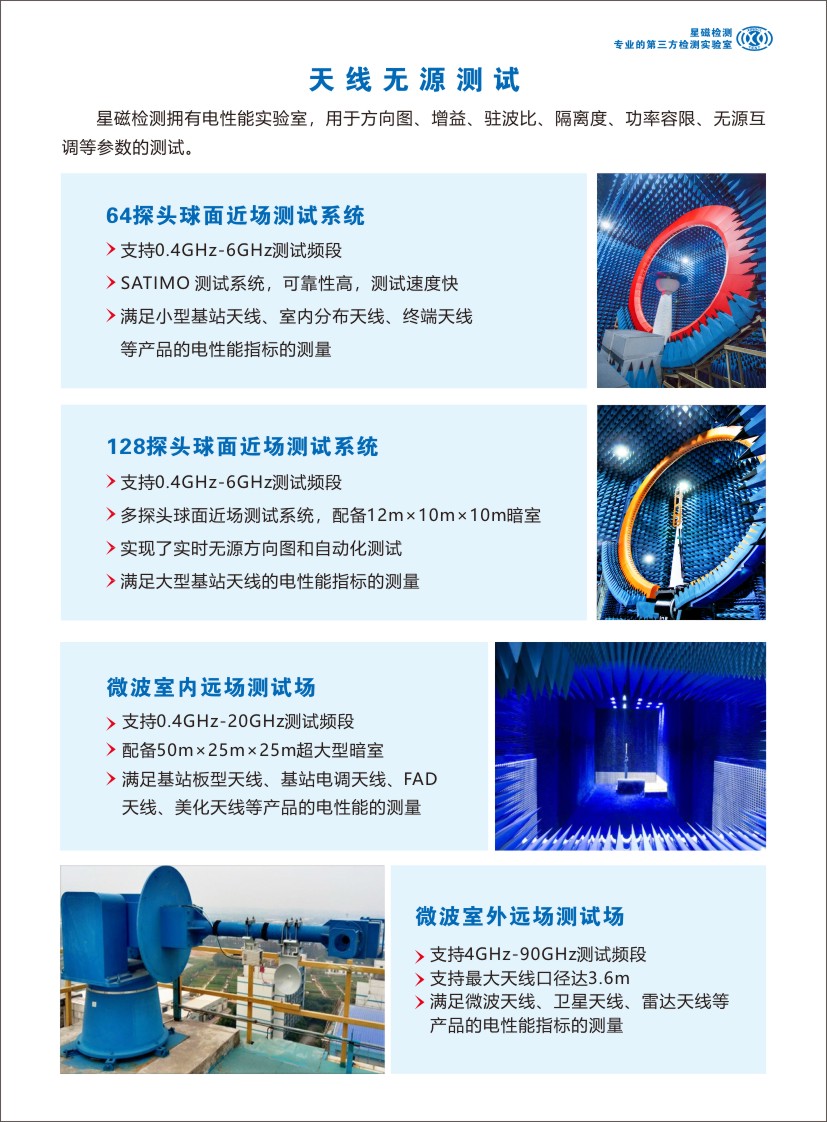

128-probe spherical near-field test system

The system is equipped with a 12m*10m*10m darkroom, which realizes real-time passive pattern and automated testing.The probes are symmetrically distributed. Under normal measurement conditions, only need to rotate 180° in the horizontal direction to perform a complete 3D measurement of the measured object.

Support 400MHz to 6GHz test frequency band, the maximum antenna size is up to 3 meters, and the maximum weight is 120 kg, which can meet the measurement of electrical performance indicators of large base station antennas.
